Chevrolet Truck Air Conditioning Units For 1955 to 1959 Chevrolet Trucks

Drier Tech Tip
Always mount the direr
in a cool place.
Inside the car is acceptable.
Mount in the vertical position with the connections on top.
On HFC-134a systems,
DO NOT charge the system by the sight glass. When properly charged, the sight glass in a 134a system will still
show milky.
It is recommended to replace the drier anytime a connection in the system has
been opened.

1955 To 1959
A/C Control Panel

ELITE 1955 to 1959 CHEVY PICKUP COMPLETE PACKAGE
The Elite '55-'59 Chevy Pickup Package is a kit of matched components engineered to easily install into second series Chevy pickups.

The Elite '55-'59 Chevy Pickup Package is a kit of matched components engineered to easily install into second series Chevy pickups.
The system provides three vents of air conditioning, floor or vent heat,
two ports of dehumidified defrost and operates using the
deluxe heater controls (available separately).
Vacuum system also available.

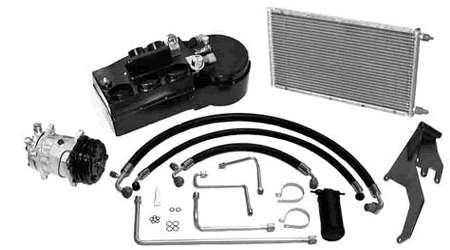

Package includes: Elite Series evaporator, new Sanden compressor,
Alan Grove compressor bracket, hose kit with drier,
condenser and binary safety switch.
The evaporator replaces the factory heater and mounts behind the dash
on the firewall inside the truck. It can be mounted using existing
holes in the stock firewall or the brackets can be welded
to the firewall for a smooth appearance.

The Elite '55-'59 Chevy Pickup Package is a kit of matched components engineered to easily install into second series Chevy pickups

Complete Package Elite '55-'59 Chevy
134a Kit Number
75-0055 Your Cost $998.00
Complete Package Elite '55-'59 Chevy
R-12 Kit Number
75-0155 Your Cost $998.00

Component Parts Elite '55-'59 Chevy
Evaporator Kit Number
51-0055 Your Cost $498.00
Deluxe Heater Control
25-0055 Your Cost $160.00
